SPRINT CAR SPECIFIC BOLTS & HARDWARE
(TITANIUM & STEEL):

BK-032 MUD COVER STEEL BOLT KIT - STANDARD
(3)- 5/16" PLATED FLANGE BOLTS
(3)- RIV-NUT PLATES
(6)- RIVETS

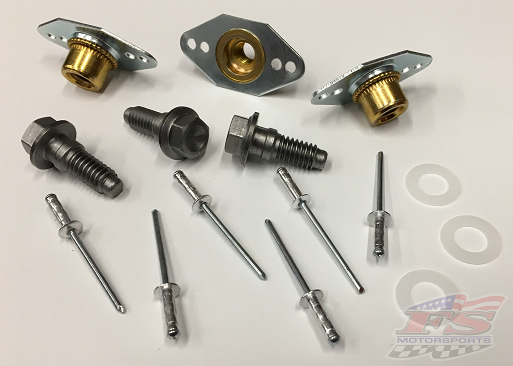

BK-033 MUD COVER STEEL BOLT KIT - DELUXE
(3)- 5/16" FLANGE BOLTS WITH BULLET NOSE
(3)- NYLON WASHERS
(3)- RIV-NUT PLATES
(6)- RIVETS

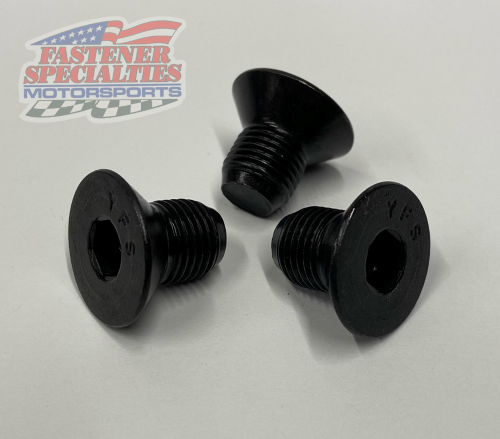

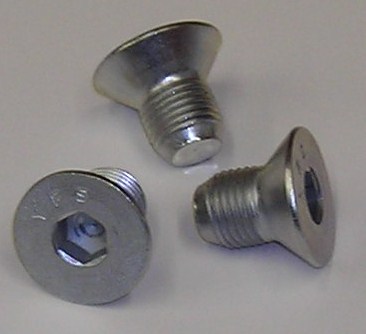

BK-005 FRONT ROTOR BOLT KIT WITHOUT LOCKNUTS - STEEL
(3)- 1/2"-20 X 3/4" FLAT HEAD
TI-SET-3507 FRONT ROTOR BOLT SET - TITANIUM
(3)- 1/2"-20 X 3/4" FLAT HEAD
TI-SET-3502 FRONT ROTOR BOLT SET - TITANIUM
"RED DEVIL STYLE"
(3)- 1/2"-20 X 3/4" SMALL FLAT HEAD

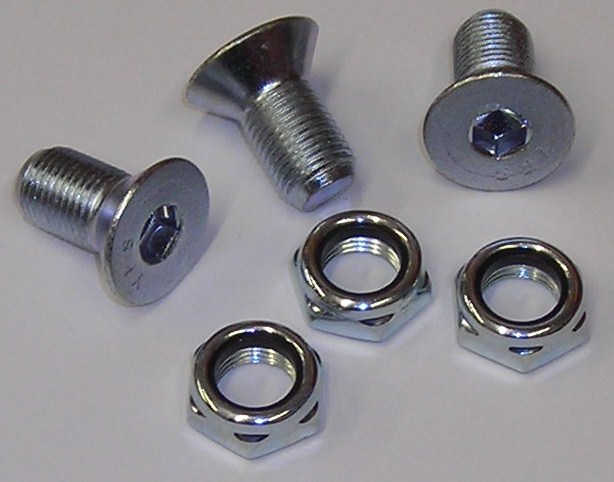

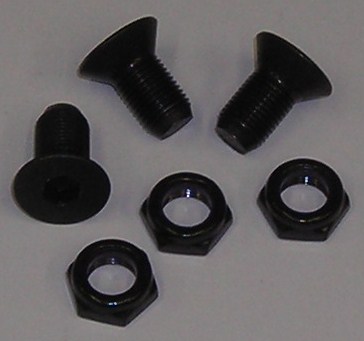

BK-006 FRONT ROTOR BOLT KIT WITH LOCKNUTS - STEEL
(3)- 1/2"-20 X 1" FLAT HEAD
(3)- 1/2"-20 THIN LOCKNUTS

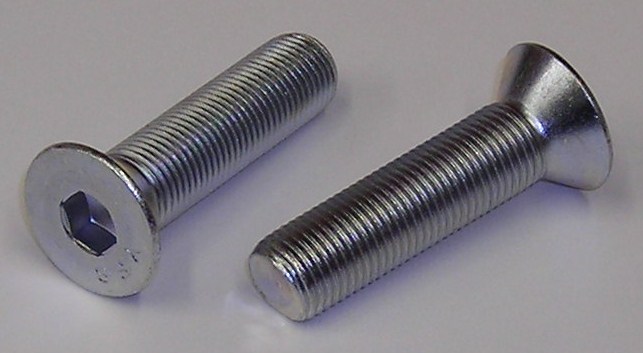

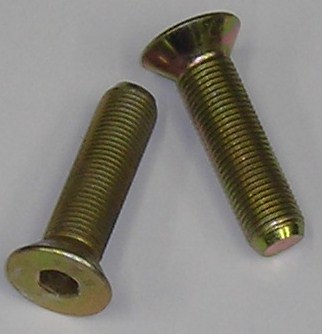

BK-007 FRONT BRAKE BRACKET TO SPINDLE BOLT KIT - STEEL
(2)- 1/2"-20 X 2" FLAT HEAD
TI-SET-3519 FRONT BRAKE BRACKET TO SPINDLE BOLT SET - TITANIUM
(2)- 1/2"-20 X 1.9 FLAT HEAD

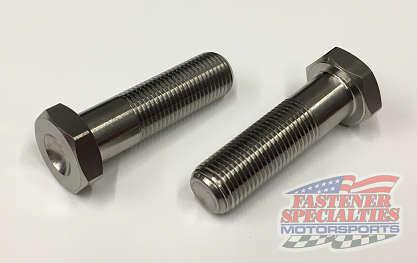

TI-SET-5817 RIGHT FRONT STEERING ARM TO SPINDLE BOLT SET - TITANIUM
(2)- 1/2" X 1 3/4" HEX HEAD

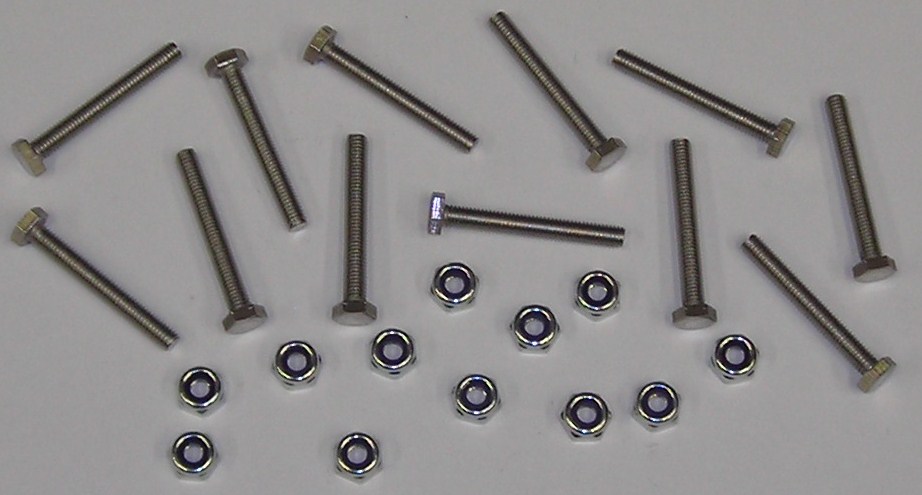

BB-HH-010-150-12PK BUMPER BOLT KIT - STAINLESS STEEL - HEX HEAD
(12)- 10-32 X 1 1/2" HEX HEAD
(12)- 10-32 THIN LOCKNUTS
BB-SH-010-150-12PK BUMPER BOLT KIT - STAINLESS STEEL - SOCKET HEAD
(12)- 10-32 X 1 1/2" SOCKET HEAD
(12)- 10-32 THIN LOCKNUTS
BB-HH-010-150-AN-12PK BUMPER BOLT KIT - TRUE AN - HEX HEAD
(12)- 10-32 X 1 1/2" HEX HEAD
(12)- 10-32 THIN LOCKNUTS (GOLD)
TI-KIT-BB BUMPER BOLT KIT - TITANIUM - HEX HEAD
(12)- 10-32 X 1 1/2" HEX HEAD
(12)- 10-32 THIN LOCKNUTS

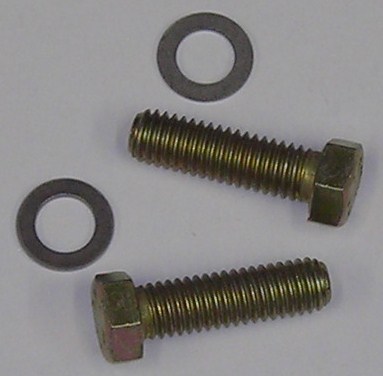

BK-008 INBOARD CALIPER BOLT KIT - STEEL
(2)- 7/16"-14 X 1 1/2" HEX HEAD
(2)- 7/16" AN WASHERS

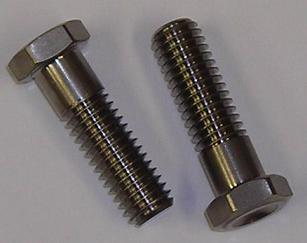

TI-SET-4715 INBOARD CALIPER BOLT SET- TITANIUM
(2)- 7/16"-14 X 1 1/2" HEX HEAD

JL-KIT-001 1/2" JACOBS LADDER PIN KIT - STEEL
(2)- 3/8" X 3.7 PINS
(1)- 1/2" X 1.3 PIN
WITH CLIPS & SPRINGS
TI-KIT-951 1/2" JACOBS LADDER PIN KIT - TITANIUM
(2)- 3/8" X 3.7 PINS
(1)- 1/2" X 1.3 PIN
WITH CLIPS

NO SPRINGS
JL-KIT-004 3/8" JACOBS LADDER PIN KIT - STEEL
(2)- 3/8" X 3.7 PINS
(1)- 3/8" X 1.3 PIN
WITH CLIPS & SPRINGS
TI-KIT-950 3/8" JACOBS LADDER PIN KIT - TITANIUM
(2)- 3/8" X 3.7 PINS
(1)- 3/8" X 1.3 PIN
WITH CLIPS
NO SPRINGS
JL-KIT-005 JACOBS LADDER PIN KIT- STEEL - JEI STYLE
(2)- 3/8" X 4.3 PINS
(1)- 1/2" X 1.3 PIN
WITH CLIPS & SPRINGS

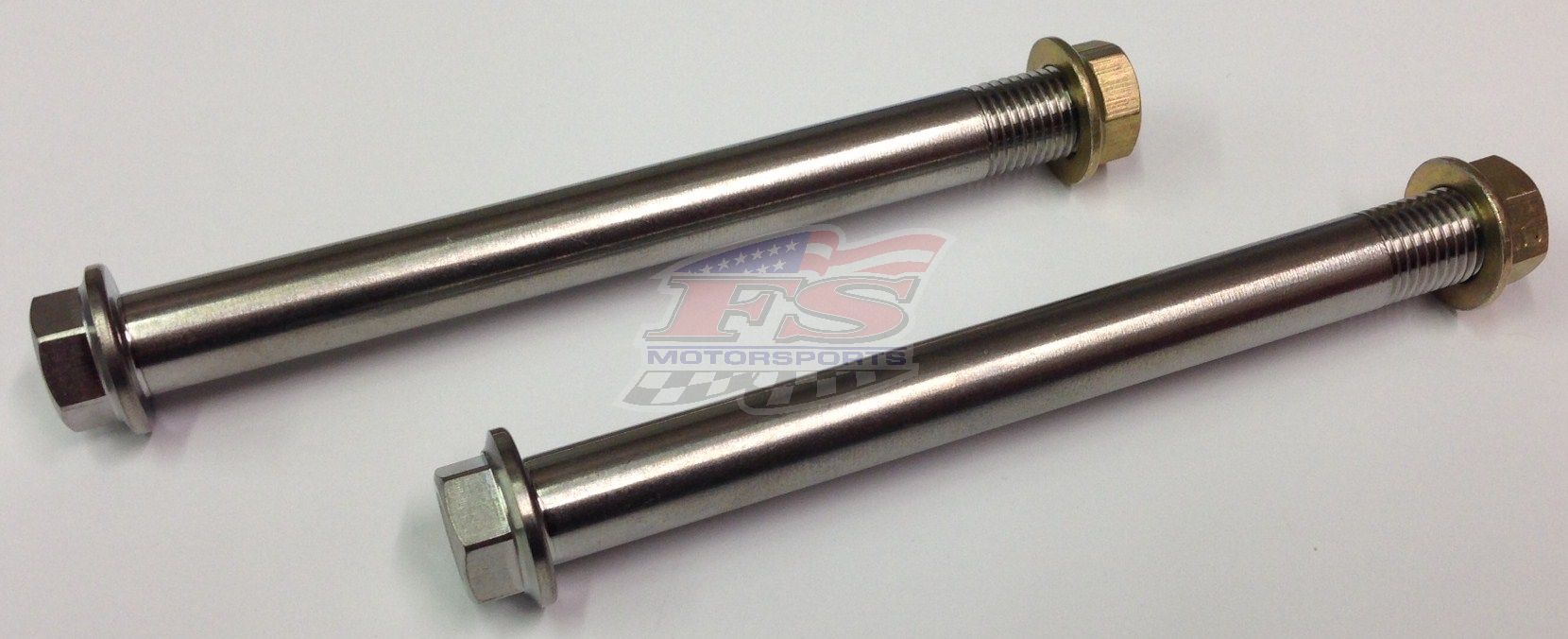

TI-KIT-8738 JACOBS LADDER THREADED PIN WITH HEX FLANGE HEAD KIT - TITANIUM
(2) 3/8" PINS WITH THREADED ENDS & 7/16" FLANGED HEX HEAD
(2) 3/8"-24 JET NUTS

TI-SET-3818 W-LINK BOLT SET - TITANIUM
(2)- 3/8"-24 X 1.8 FLAT BUTTON HEAD

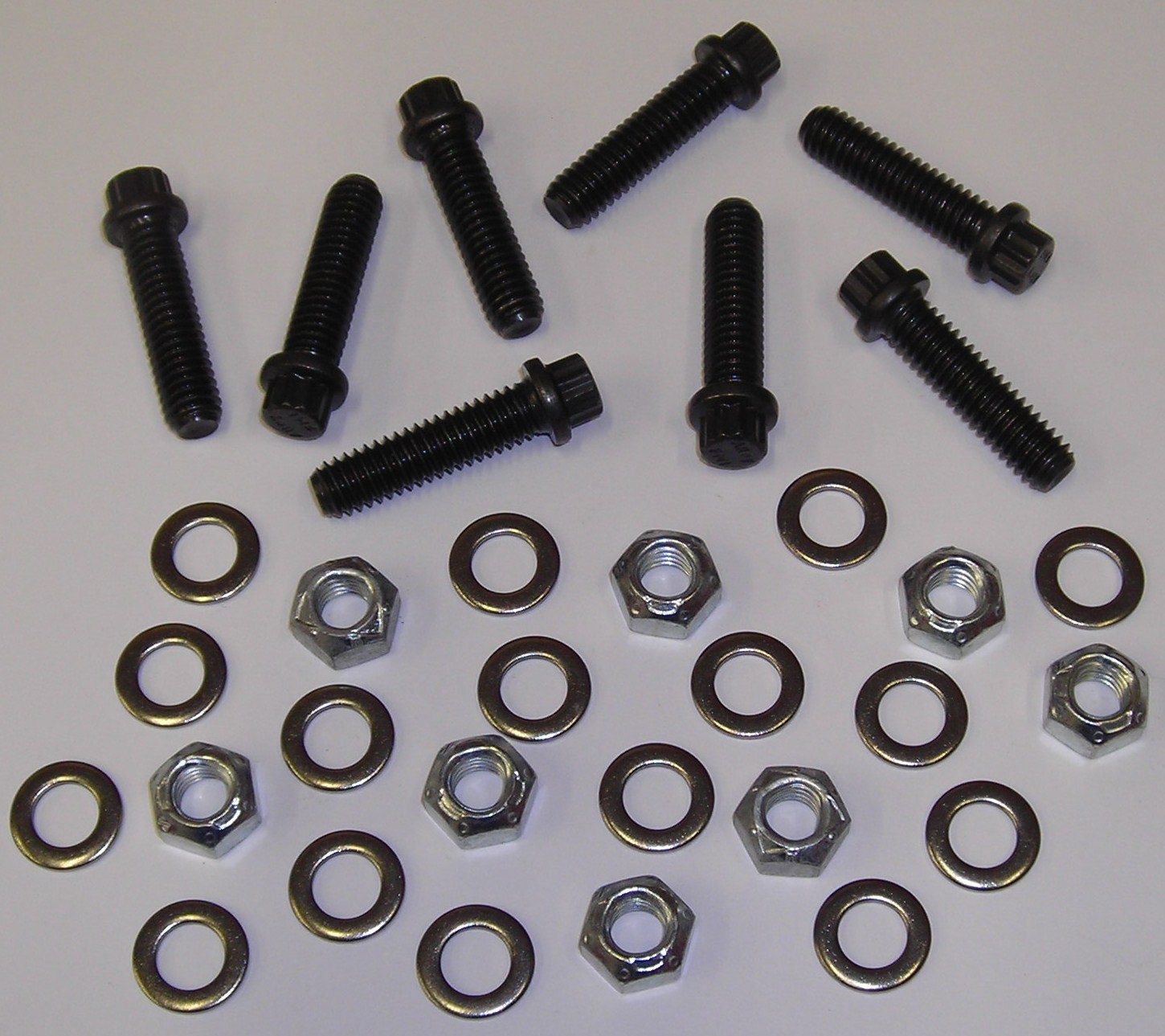

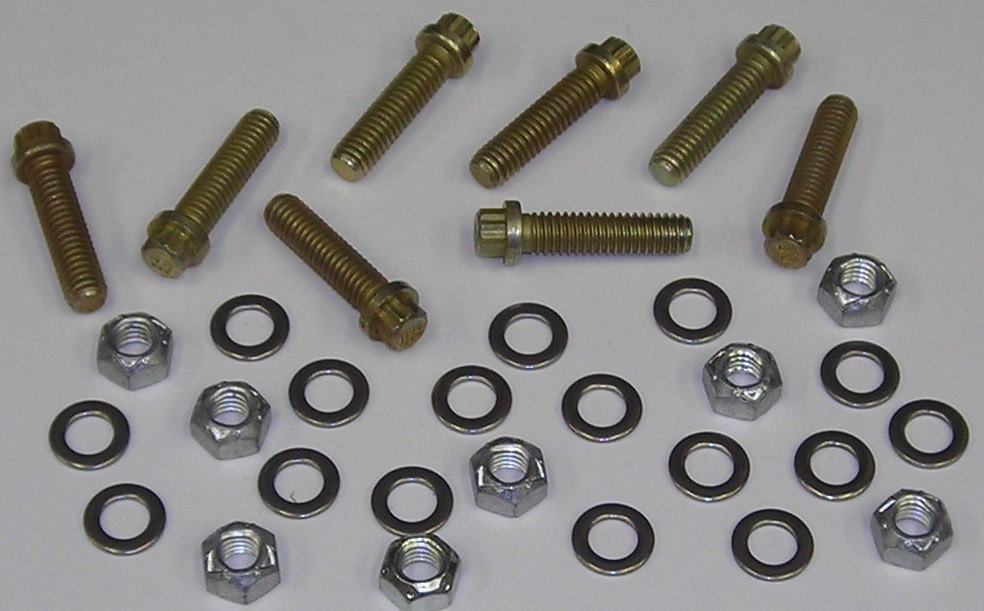

BK-009 INBOARD ROTOR BOLT KIT - STEEL
(8)- 5/16"-18 BOLTS WITH 12PT HEAD
(8)- 5/16"-18 STOVER LOCKNUTS
(16)- 5/16" AN WASHERS

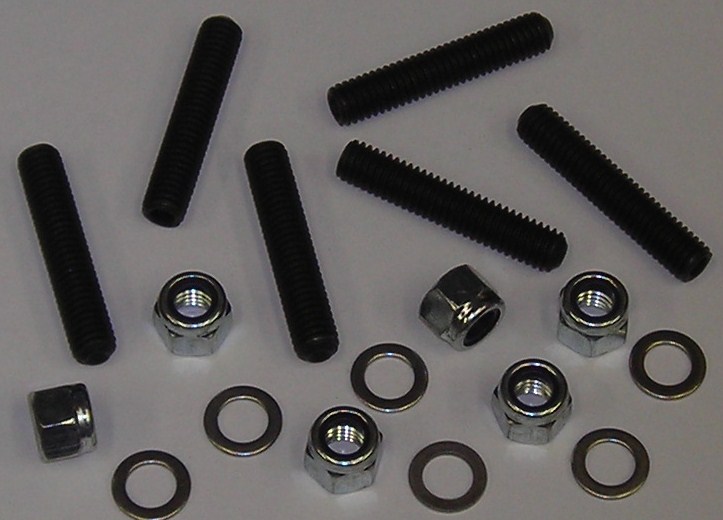

BK-010 TORQUE TUBE STUD KIT- ALLEN BROACHED - STEEL
(6)- TORQUE TUBE STUDS- ALL COARSE
(6)- 3/8"-16 FULL LOCKNUTS
(6)- 3/8" AN WASHERS

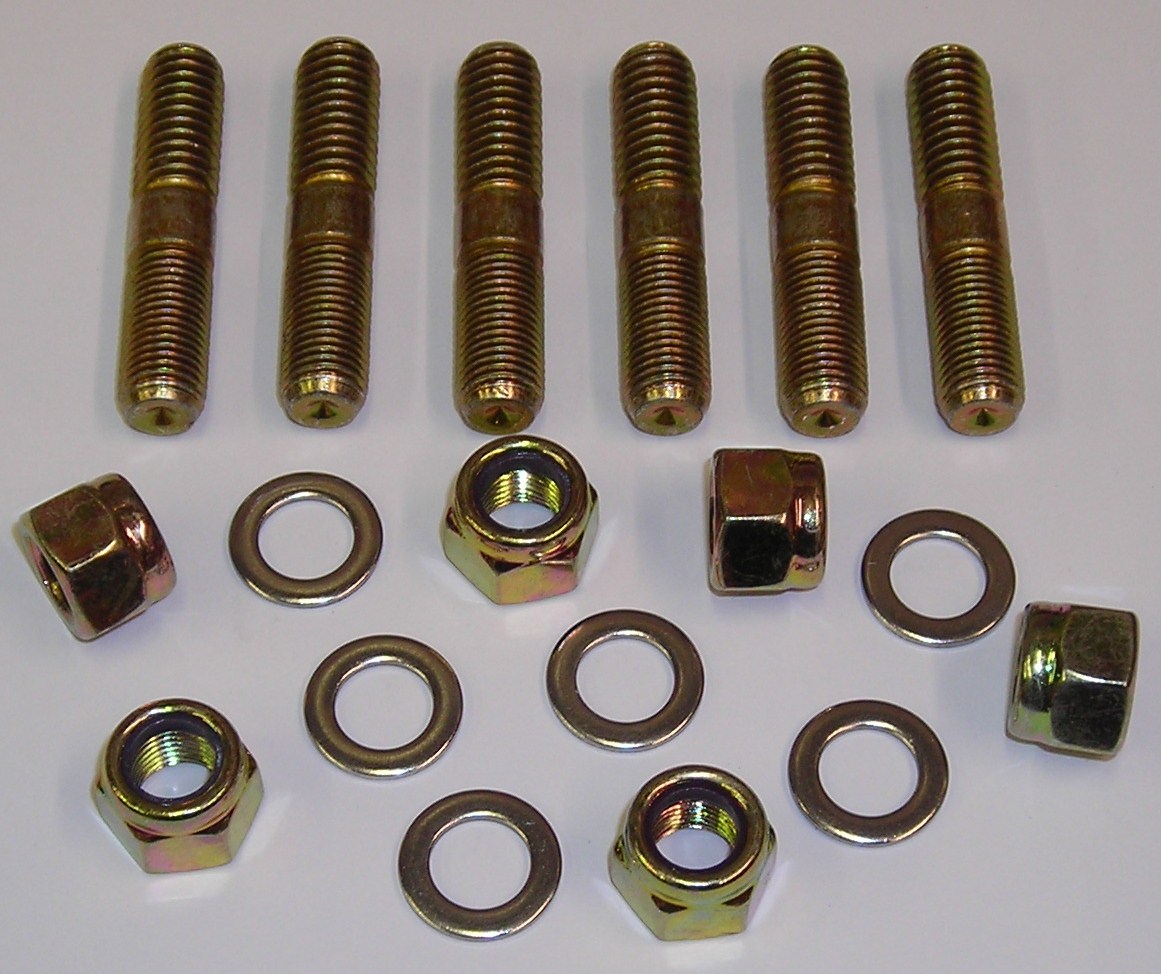

BK-011 TORQUE TUBE STUD KIT- STEEL
(6)- TORQUE TUBE STUDS
(6)- 3/8"-24 FULL LOCKNUTS
(6)- 3/8" AN WASHERS
BK-028 UPGRADED
TORQUE TUBE STUD KIT- STEEL
(6)- TORQUE TUBE STUDS
(6)- 3/8"-24 JET NUTS
(6)- 3/8" AN WASHERS

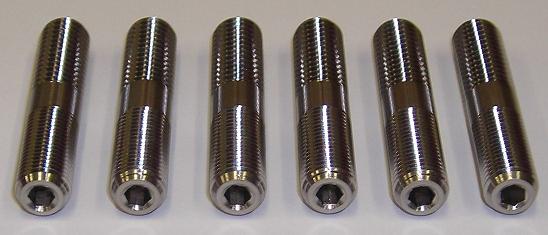

TI-SET-3120 TORQUE TUBE STUD SET - ALLEN BROACHED ENDS - TITANIUM
(6)- TORQUE TUBE STUDS WITH BROACHED ENDS

TI-SET-4612 TORQUE TUBE BOLT SET - TITANIUM
(6)- 3/8"-16 X 1 1/4" BOLTS

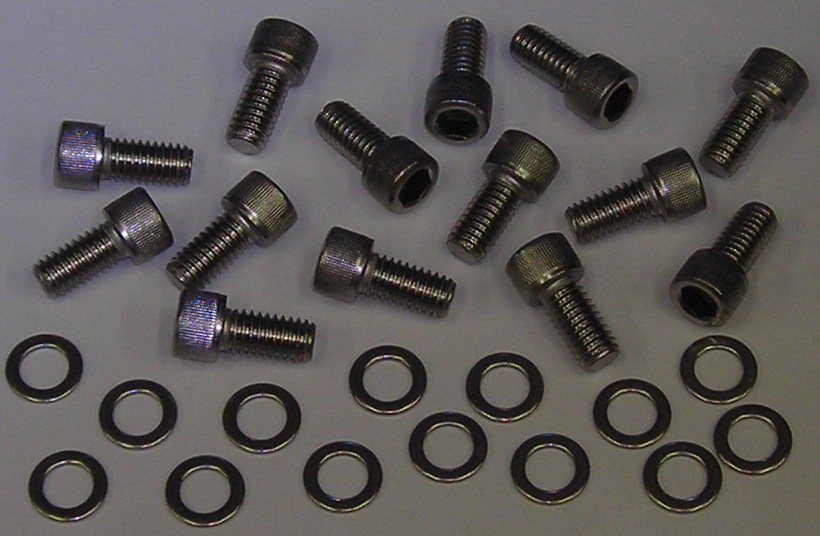

BK-012 HEADER BOLT KIT- SOCKET HEAD - STEEL
(14)- STAINLESS STEEL HEADER BOLTS
(14)- 3/8" AN WASHERS

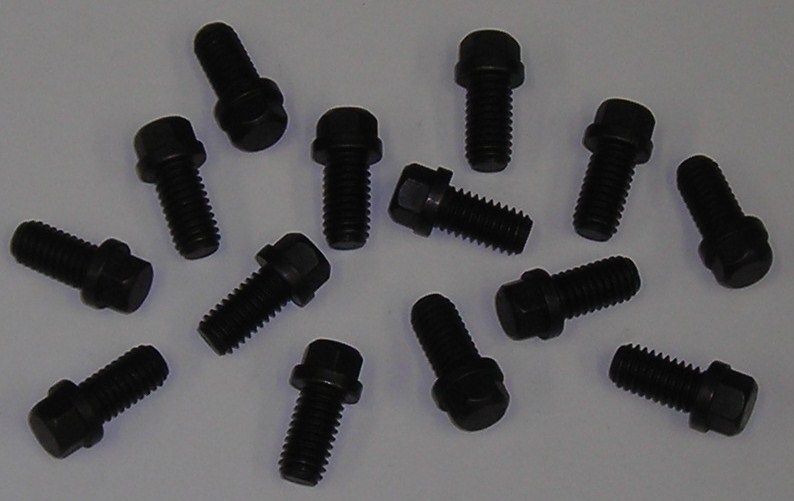

BK-013 HEADER BOLT KIT- HEX HEAD - ALLOY STEEL
(14)- SMALL HEX ALLOY HEADER BOLTS WITH 7/16" HEAD

BK-024 HEADER BOLT KIT- 12 POINT HEAD - ALLOY STEEL
(14)- 12 POINT HEAD ALLOY HEADER BOLTS

BK-031
THROTTLE LINKAGE HARDWARE KIT- STAINLESS STEEL BOLTS

ALL ITEMS INCLUDED IN COMPARTMENTED CASE:
(12)- 10-32 x 1/2" SOCKET HEAD
(12)- 10-32 x 5/8" SOCKET HEAD
(12)- 10-32 x 3/4" SOCKET HEAD
(12)- 10-32 x 7/8" SOCKET HEAD
(50)- 10-32 THIN LOCKNUTS

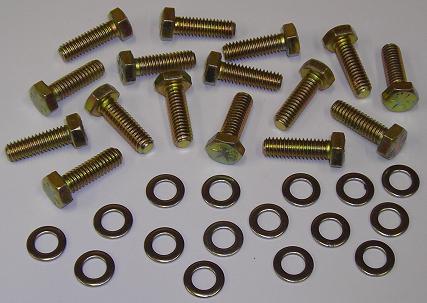

BK-014 BEADLOCK BOLT KIT- HEX HEAD - GRADE 8 - 1"
(16)- 1" BEADLOCK BOLTS
(16)- 5/16" AN WASHERS
BK-015 BEADLOCK BOLT KIT- HEX HEAD - GRADE 8- 1 1/4"
(16)- 1 1/4" BEADLOCK BOLTS
(16)- 5/16" AN WASHERS

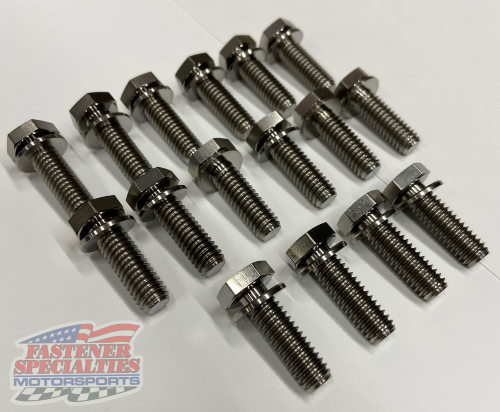

TI-KIT-4510K BEADLOCK BOLT KIT- HEX HEAD - TITANIUM- 1"
(16)- 1" BEADLOCK BOLTS
(16)- 5/16" AN WASHERS
TI-KIT-4511K BEADLOCK BOLT KIT- HEX HEAD - TITANIUM- 1 1/8"
(16)- 1 1/8" BEADLOCK BOLTS
(16)- 5/16" AN WASHERS

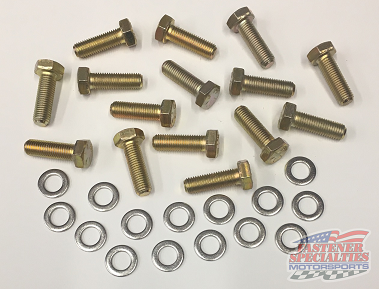

BK-034 WHEEL CENTER BOLT KIT- HEX HEAD - GD8 - 3/4"
(15)- 3/4" BEADLOCK BOLTS
(15)- 5/16" AN WASHERS
BK-035 WHEEL CENTER BOLT KIT- HEX HEAD - GD8 - 7/8"
(15)- 7/8" BEADLOCK BOLTS
(15)- 5/16" AN WASHERS
TI-KIT-5507 WHEEL CENTER BOLT KIT- HEX HEAD - TITANIUM - 3/4"
(15)- 3/4" BEADLOCK BOLTS
(15)- 5/16" AN WASHERS
TI-KIT-5508 WHEEL CENTER BOLT KIT- HEX HEAD - TITANIUM - 7/8"
(15)- 7/8" BEADLOCK BOLTS
(15)- 5/16" AN WASHERS

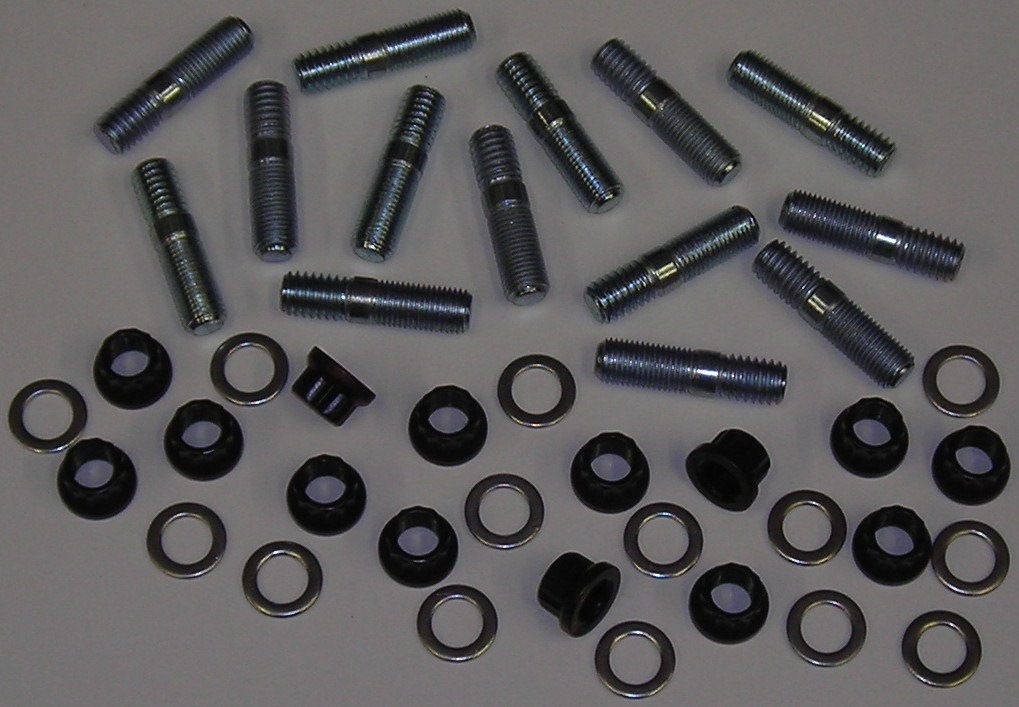

BK-016 HEADER STUD KIT - STEEL
(14)- STUDS
(14)- 3/8"-24 HEADER NUTS
(14)- 3/8" AN WASHERS

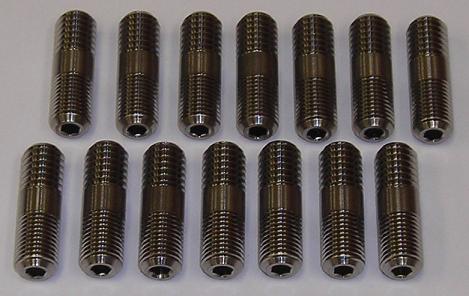

TI-SET-1120K HEADER STUD SET - TITANIUM - WITH BROACHED ALLEN
(14)- 3/8"-16/24 X 1.2 BROACHED STUDS

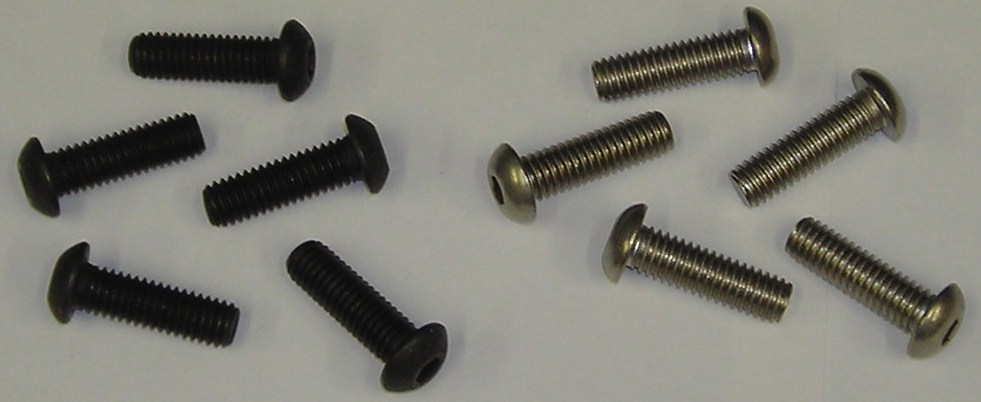

BK-017 FRONT HUB LUG BOLTS- ALLOY
(10)- FRONT HUB LUG BOLTS (BLACK)
BK-018 FRONT HUB LUG BOLTS- STAINLESS
(10)- FRONT HUB LUG BOLTS (SILVER)

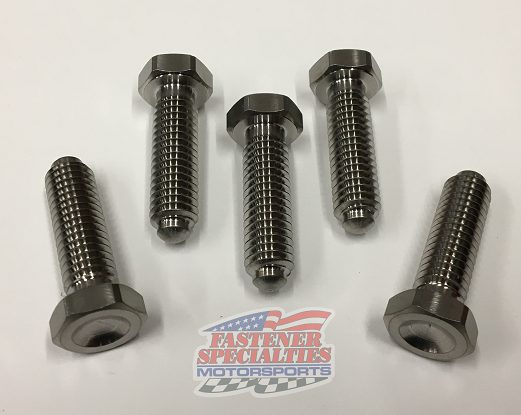

TI-SET-3013 FRONT HUB BOLT SET - TITANIUM
(5)- BUTTON HEAD BOLTS W/ BULLET NOSE

BK-019 TORQUE BALL STUD/NUT KIT - STEEL
(4)- TORQUE BALL HI-NUTS
(4)- 5/16" TORQUE BALL STUDS

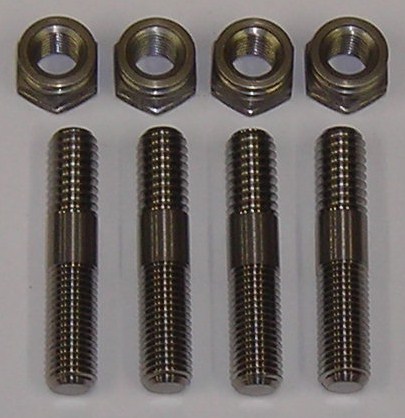

TI-KIT-3016 TORQUE BALL STUD KIT - TITANIUM
(4)- STUDS
(4)- S.S. AIRCRAFT NUTS

TI-SET-4512B TORQUE BALL BOLT SET - TITANIUM
(4)- 5/16"-18 X 1 1/4" BOLTS

TI-KIT-3810B/H TORQUE BALL TO MOTOR PLATE PRESS-IN BOLT KIT - BUTTON HEAD- BROACHED ON THREADED END - TITANIUM
(6) 3/8"-24 X 1" PRESS-IN BOLTS
(6) 3/8" AN WASHERS
(6) 3/8"-24 THIN LOCKNUTS
TI-KIT-3812B/H TORQUE BALL TO MOTOR PLATE PRESS-IN BOLT KIT - BUTTON HEAD- BROACHED ON THREADED END - TITANIUM
(6) 3/8"-24 X 1 1/4" PRESS-IN BOLTS
(6) 3/8" AN WASHERS
(6) 3/8"-24 THIN LOCKNUTS

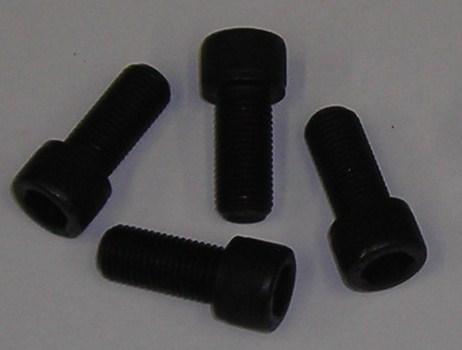

BK-021 U-JOINT BOLT KIT- SOCKET HEAD- ALLOY STEEL
(4)- ALLOY STEEL U-JOINT BOLTS

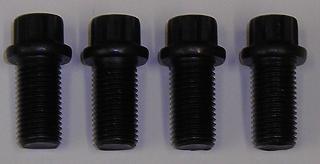

BK-025 U-JOINT BOLT KIT- 12 POINT HEAD - ALLOY STEEL - 7/8" LONG
(4)- 7/8" LONG ALLOY STEEL U-JOINT BOLTS
BK-027 U-JOINT BOLT KIT- 12 POINT HEAD - ALLOY STEEL - 1" LONG
(4)- 1" LONG ALLOY STEEL U-JOINT BOLTS

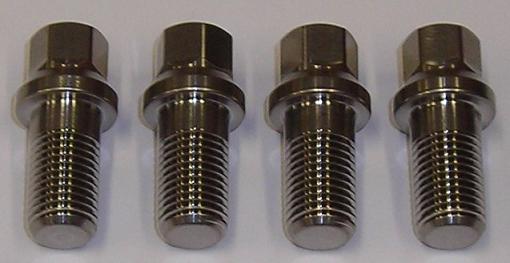

TI-SET-8309 U-JOINT BOLT SET - TITANIUM - 7/8" LONG
(4)- 7/8" LONG BOLTS W/ JET NUT HEAD
TI-SET-8310 U-JOINT BOLT SET - TITANIUM - 1" LONG
(4)- 1" LONG BOLTS W/ JET NUT HEAD
TI-SET-8313 U-JOINT BOLT SET - TITANIUM - 1 3/8" LONG
(4)- 1 3/8" LONG BOLTS W/ JET NUT HEAD

BK-026 TAIL TANK STUD KIT - STAINLESS
(12)- STAINLESS STEEL TAIL TANK STUDS
(12)- JET NUTS

TI-SET-4507 TAIL TANK MOUNTING BOLT SET - TITANIUM
(4)- 5/16"-18 X 3/4" HEX HEAD

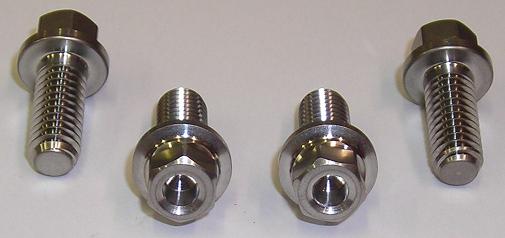

TI-SET-8107 TAIL TANK MOUNTING BOLT SET - TITANIUM
(4)- 5/16"-18 X 3/4" JET NUT HEAD

TI-SET-4505 STEERING WHEEL BOLT SET - TITANIUM
(3)- 5/16"-18 X 1/2" HEX HEAD

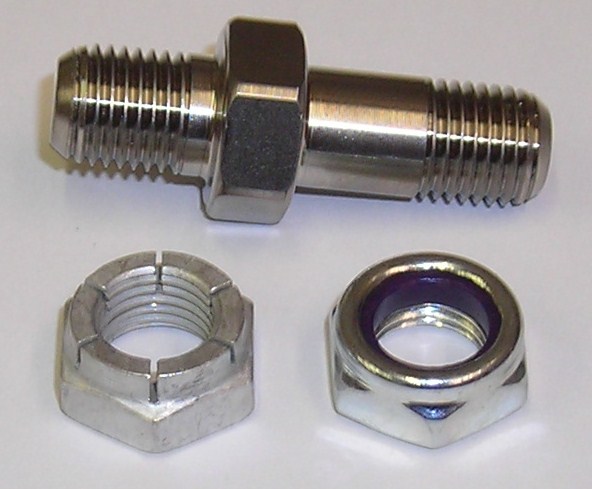

TI-7615 3/8" WING STUD - TITANIUM

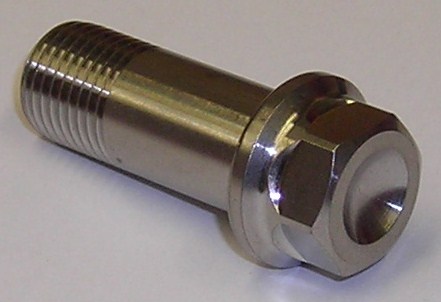

TI-8412 FRONT AXLE BOLT WITH 9/16" HEX - TITANIUM
1/2"-20 X 1 1/4"
TI-8415 FRONT AXLE BOLT WITH 9/16" HEX - TITANIUM
1/2"-20 X 1 1/2"

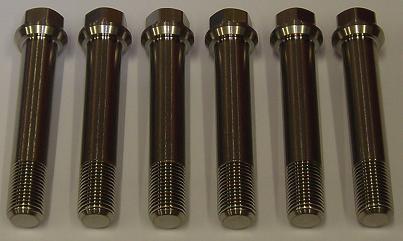

TI-SET-8427B 9/16" HEX RADIUS ROD BOLT SET - TITANIUM
(6) 1/2"-20 X 2 3/4" BOLTS WITH 9/16" HEX

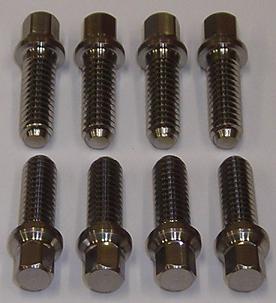

TI-SET-8007 STACK BOLT SET - TITANIUM
(8) 1/4"-20 X 3/4" BOLTS WITH JET NUT HEADS

TI-SET-3921 STEERING BOLT SET - TITANIUM - 2.1"
(2)- 1/2"-20 X 2.1 FLAT BUTTON HEAD

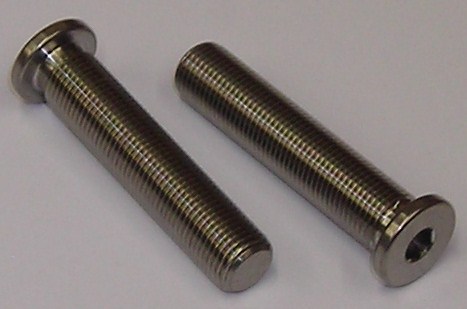

TI-SET-3923 STEERING BOLT SET - TITANIUM - 2 3/8"
(2)- 1/2"-20 X 2 3/8" FLAT BUTTON HEAD
TI-SET-3926 STEERING BOLT SET - TITANIUM - 2 1/2"
(2)- 1/2"-20 X 2 1/2" FLAT BUTTON HEAD
TI-SET-3925 STEERING BOLT SET - TITANIUM - 2 3/4"
(2)- 1/2"-20 X 2 3/4" FLAT BUTTON HEAD
TI-SET-3930 STEERING BOLT SET - TITANIUM - 3"
(2)- 1/2"-20 X 3" FLAT BUTTON HEAD

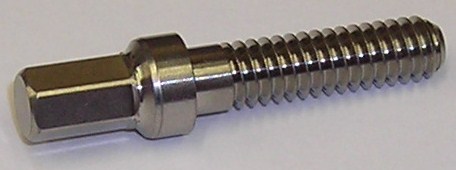

TI-8010 FUEL PUMP CLAMP
PINCH BOLT - TITANIUM
1/4"-20 X 1" WITH JET HEAD

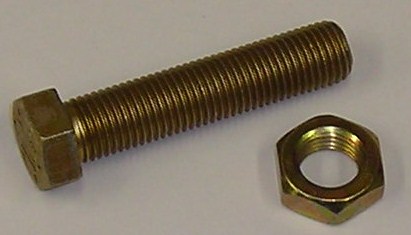

TOR-B-GD8 TORSION BOLT- GRADE 8 W/ JAM
7/16"-20 X 2"- FULL THREAD

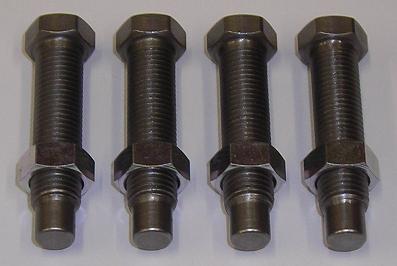

STL-KIT-5719-916 TORSION ADJUSTER BOLT KIT - STEEL - 9/16" HEX & JAMS
(4)- 7/16"-20 X 1.9 BOLTS WITH 9/16" HEX
(4)- STEEL NUTS WITH 9/16" HEX

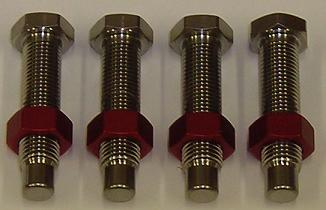

TI-KIT-5719 TORSION ADJUSTER BOLT KIT - TITANIUM - 5/8" HEX & JAMS - STANDARD
(4)- 7/16"-20 X 1.9 BOLTS WITH 5/8" HEX
(4)- ALUMINUM NUTS WITH 5/8" HEX
TI-KIT-5719-916 TORSION ADJUSTER BOLT KIT - TITANIUM - 9/16" HEX & JAMS
(4)- 7/16"-20 X 1.9 BOLTS WITH 9/16" HEX
(4)- STEEL NUTS WITH 9/16" HEX

TOR-NUT-M ALUMINUM TORSION BOLT NUT- MILL FINISH- 5/8" HEX
TOR-NUT-R ALUMINUM TORSION BOLT NUT- ANODIZED- 5/8" HEX
TOR-NUT-SM-BL ALUMINUM TORSION BOLT NUT- BLACK - SMALL 9/16" HEX
TOR-NUT-SM-S STEEL TORSION BOLT NUT- ZINC- SMALL 9/16" HEX

TI-1061 TITANIUM TORSION STOP
(1 3/4" SPLIT)
WITH TITANIUM HARDWARE
TI-1062-T ALUMINUM TORSION STOP
(1 3/4" SPLIT)
WITH TITANIUM HARDWARE

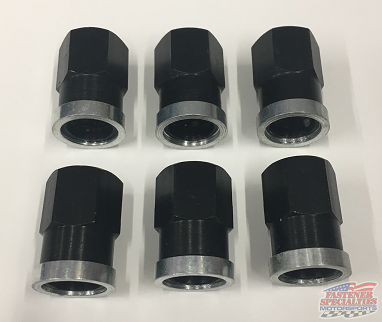

HN-RC REAR COVER HIGH NUT-
SHORT STYLE
THESE FIT DMI OR WINTERS
